$11.00
Add to Cart

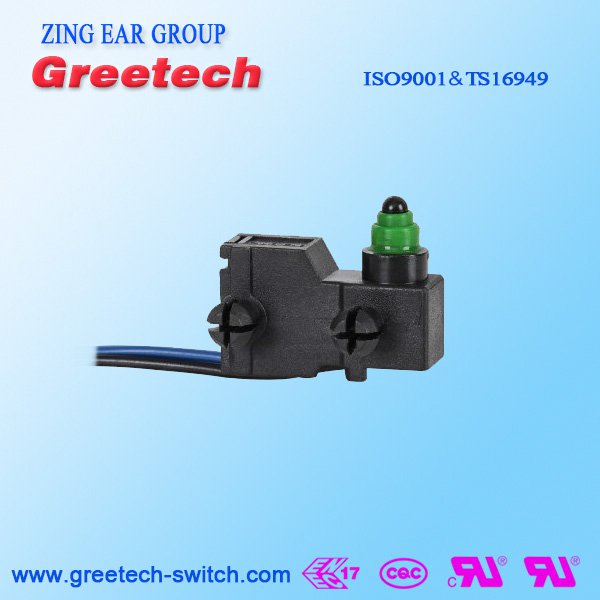

Waterproof Auto Switch
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Place of Origin: Guangdong, China (Mainland)
Brand Name: ZING EAR
Model Number: G303-130S00A1
Max. Current: 0.1/3A
Max. Voltage: 125/250VAC 12//48VDC
Operating Temperature: -40℃~+85℃
Protection Level: IP67
Electrical life: Min. 100,000cycles
Mechanical life: Min. 500,000cycles
Operating force: 130gf max at the pin plunger
Terminal: Solder terminals
Circuit code: SPDT
Lever type: No Lever Pin Plunger
Post: A type no post
Certificates: UL, cUL, ENEC, CE, CQC, RoHS, Reach
Application: Auto Electronics,Air conditioner,communication,tooth brush,toys etc
Guarantee: Trade assurance
http://www.greetech-switch.com
Brand Name: ZING EAR
Model Number: G303-130S00A1
Max. Current: 0.1/3A
Max. Voltage: 125/250VAC 12//48VDC
Operating Temperature: -40℃~+85℃
Protection Level: IP67
Electrical life: Min. 100,000cycles
Mechanical life: Min. 500,000cycles
Operating force: 130gf max at the pin plunger
Terminal: Solder terminals
Circuit code: SPDT
Lever type: No Lever Pin Plunger
Post: A type no post
Certificates: UL, cUL, ENEC, CE, CQC, RoHS, Reach
Application: Auto Electronics,Air conditioner,communication,tooth brush,toys etc
Guarantee: Trade assurance
http://www.greetech-switch.com
